Light Experiment  (LIS Mode)

This is a LIS sensor experiment shows a very simple setup of matches being struck in a darkened area.


The setup is very basic as shown in the lower right right image, the module to the right is the Wireless Multi Sensor set to the LIS mode. When the match is struck the LIS will pick up the light change and it will start the sequence.  The DC2 trigger time was set to 1.4 seconds allowing the camera to shoot about 8 images in succession.


The WMS will send a wireless signal to the DC2 Controller, which will trigger the camera.


In this sequence to reduce the delay the auto-focus was OFF and image stabilisation was ON.


PLAYING WITH CONBUSTABLE MATERIALS CAN BE HAZARDOUS, PLEASE BE CAREFUL.

TECHNICAL INFORMATION

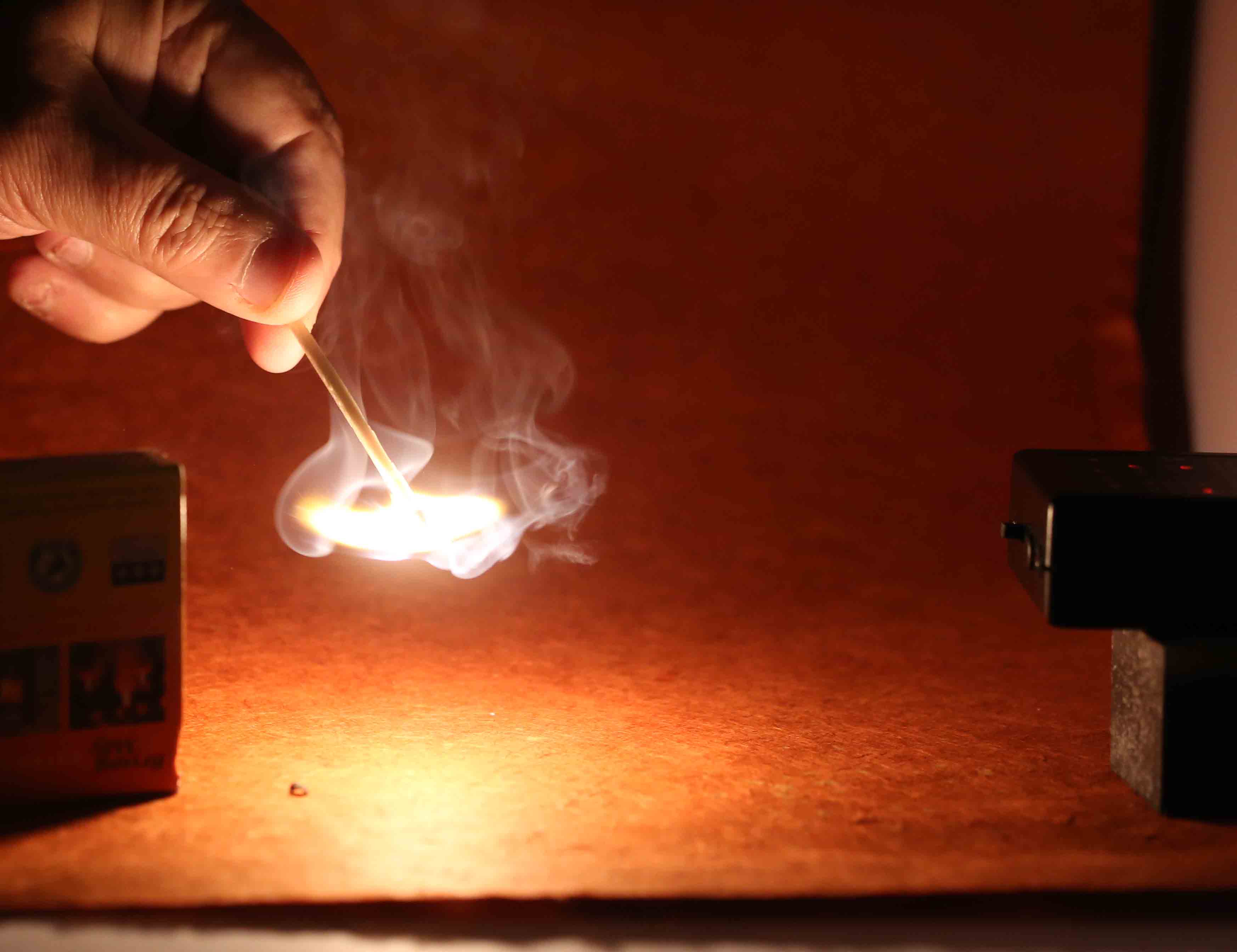

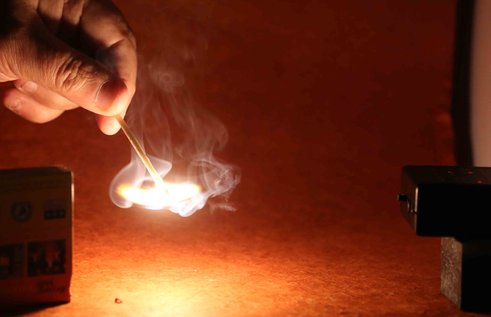

The set up - Light Experiment
Flame 1
Flame 2

CAMERA SETTINGS

Camera               - Canon 6D

Lens                   - Tamron 90mm Macro

Focus                 -  Manual

IS                      -  ON

Mode                  -  Manual

F number            -  F8

Shutter              -  1/160

ISO                    -  Auto

Drive                  -  Burst

Mirror lockup     -  Disabled

Flash                  -  OFF


TRIGGERSMART

Controller           - DC2 digital controller

Delay                  -  1 Ms

Trigger time       - 1.4 seconds

Mode                  - Manual re-arm

Link from WMS  - Wireless


Sensor              -  Wireless Multi Sensor (WMS)

Mode                 -  Light (LIS)
